Cooler Master Elite 110 Mini-ITX Computer Case Review

By Jason Vaught

Manufacturer: Cooler Master Ltd. Inc.
Product Name: Elite 110
Model Number: RC-110-KKN2-AMZ
UPC: 884102025877 EAN: 4719512046876
Price As Tested: $49.99 (Newegg | Amazon | CMStore)

Full Disclosure: The product sample used in this article has been provided by Cooler Master.

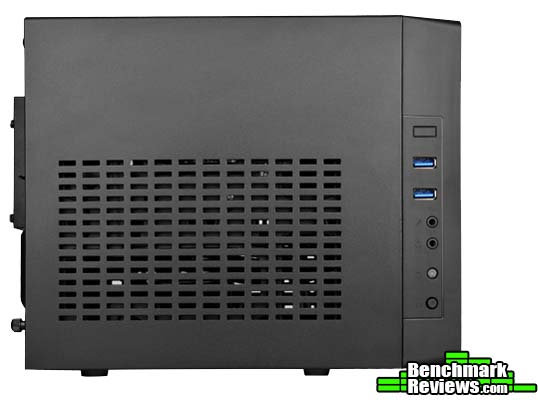

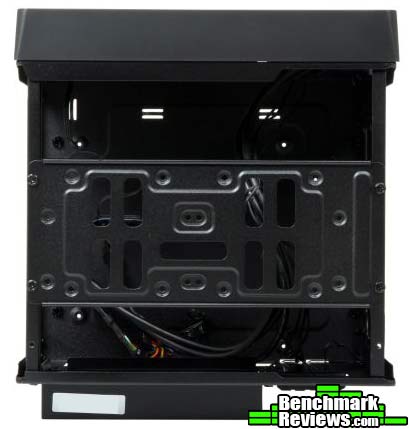

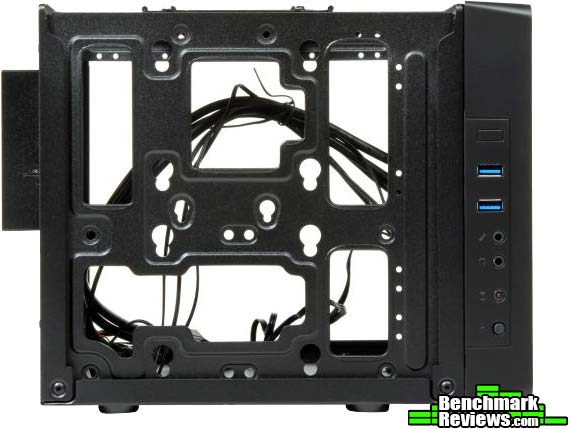

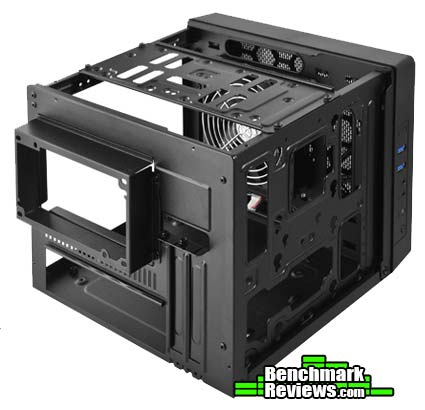

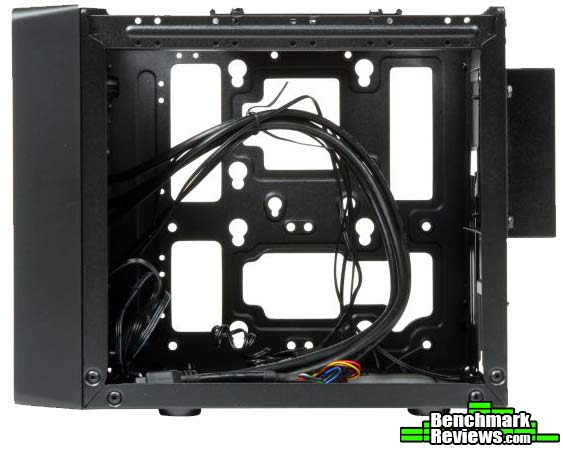

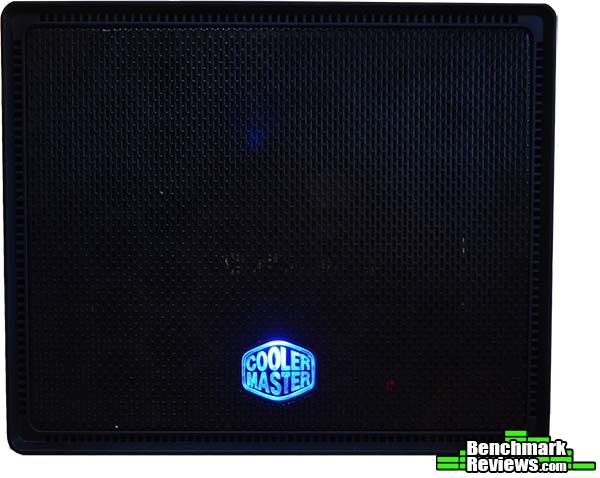

The Cooler Master Elite 110 Mini-ITX Computer Case is a compact, cube style case that can handle some full sized desktop components, while maintaining a relatively small footprint. With the ability to handle a ATX sized power supply, and desktop graphic cards up to 210mm (8.26 inches), the Elite 110 is aimed at more than just the niche market. Sporting the ability to hold 4 SSDs or 3 HDDs, storage options are not a problem.

In the past I normally stayed away from small or “tight” cases, mainly because they lacked sufficient space, at least for my tastes. But with the ease and portability of the Mini-ITX platform, cases like the Elite 110 offer little sacrifice in the way of full size performance and features.


Features & Specifications

Model RC-110-KKN2-AMZ
Color Midnight Black (black interior)
Material Appearance: polymer front mesh panel Case body: Steel alloy
Dimension 280 x 260 x 208 mm (11.1 x 10.3 x 8.2 in)
Weight 2.7 kg / 5.9 lbs
Form Factor Cube Style / LAN Box / HTPC
M/B Type Mini-ITX
3.5″ Drive Bay 3.5″ HDD x 3, or 3.5″ HDD x 2 + SSD x 2 or 3.5″ HDD x 1 + SSD x 3 or SSD x 4
I/O USB 3.0 x 2, Audio In & Out
Expansion Slots 2
Cooling System Front: 120mm fan x 1 (installed, or convert to 140mm fan x 1)
Side: 80x25mm fan x 2 (optional)
Power Supply Top Mount, Standard ATX Form Factor up to 180mm Long
Maximum Compatibility VGA card length: 210mm / 8.3 inch
CPU cooler height: 76mm / 3 inch
PSU length: 180mm/ 7.1 inch (w/ less cable management)
142mm / 5.6 inch (w/ full cable management)
Special Features Standard ATX PSU Support, 120mm Radiator Support
Up to 8.3 inch Long Graphics Card Support
Accessories Accessory Kit
Warranty 2 years
