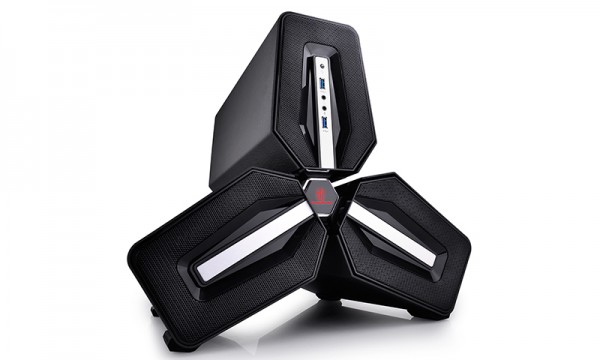

DEEPCOOL TriStellar ITX Chassis Debuts


DEEPCOOL TriStellar ITX Chassis Debuts

GAMER STORM is a High-end brand of DEEPCOOL, serving gaming enthusiasts with products that have elegant design and great cooling performance. Adhering to these characteristics, DEEPCOOL releases the first GAMER STORM ITX chassis– TRISTELLAR.

TRISTELLAR disrupts the traditional concept of a PC case, splits components into three isolated cabins. Three “V” shape metal frames ensure TRISTELLAR has a reliable and solid structure. Besides the elegant appearance, it has great cooling performance by separating the most hit-generating parts. The latest gaming configuration provides an excellent choice to DIY PC enthusiasts.

DEEPCOOL TriStellar ITX Chassis Debuts

Cabin 1. Graphic Cards

The top cabin supports full-length (up to 320mm) graphic cards, which is connected to motherboard by a short PCI-E extension cable. Preinstalled 90mm fan in front provides sufficient airflow. There are three 2.5″SDD bays with hot plugging (SATA) ports next to GPU.

Cabin 2. Motherboard

The bottom-right cabin supports a Mini-ITX motherboard, also leaves large space for CPU air cooler (up to 80mm) and120mm case fan, or120mm AIO liquid cooler.

Cabin 3. Power Supply

The bottom–left cabin is capable to accommodate a PSU up to 160mm length. Two 3.5″ HDD bays with hot plugging (SATA) ports and one 5.25″ HDD slot-load optical drive are furnished.

In addition, to connect components together, cables pass through a hollow aluminum spine to center of the ‘’V’’ shape frames, which comes with a LED power button.

Technical Spec

Materials – SPCC  (Panel thickness: 0.6mm; Cabin Cover thickness: 2mm)
Product Dimension – L395*W435*H388mm
Package Dimension – L540*W465*H485mm
Weight – Net.: 16KG  Gross: 19KG
5.25″ Drive Bays – one slot-load Optical Disk Drive Bay
3.5″ Drive Bays – 2  (all tool-free installation with hot plugging port)
2.5″ Drive Bays – 3  (all tool-free installation with hot plugging port)
I/O Panel – 2×USB3.0/Audio×1/Mic×1
Expansion Slots – 3 Slots (1 way), Included: 1×90mm Black fan in the VGA cabin
Cooling Fans – Optional: 1×120mm fan in the mainboard cabin if liquid radiator not installed. (this fan should blow outward to ensure a good cooling effect)
Power Supply Type – ATX PS2
CPU Cooler Compatibility – 80mm height
VGA Compatibility – 320mm

Available in June globally, 2015
MSRP: 399.99 USD

For more information, please check the official website www.deepcool.com
