NZXT H700i Mid-Tower ATX Case Review
By Meng Vang
Manufacturer: NZXT, Inc.
Product Name: NZXT H700i Mid-Tower Case with CAM-powered Smart Features
Model Number: CA-H700W-BB (black/black)
UPC: 815671013552
Price As Tested: $199.99 (Amazon | Newegg)Full Disclosure: The product sample used in this article has been provided by NZXT.
NZXT has brought a few new features to the table with their H-series computer cases. At the time of this review, there are three variants: the H700i (standard mid-tower ATX), H400i (micro-ATX), and H200i (mini-ITX). Aside from having tempered glass panels, a solid steel frame, and a sleek minimalistic look, each case features a CAM Powered Smart Device. The Smart Device optimizes fan noise and temperature through Adaptive Noise Reduction, meaning it will measure the noise level in the case to find the best optimal temperature for the system. These H-series cases also come with a pre-installed RGB strip at the top and a number of case fans with customizable options via the CAM software. In this article, Benchmark Reviews inspects the NZXT H700i in matte black.
Features
- CAM Powered Smart Device to simplify installation and manage use of RGB lighting and fans
- Premium, all-steel construction with the sleek H-series design; available in four color combinations
- Tempered glass panel showcases custom RGB lighting

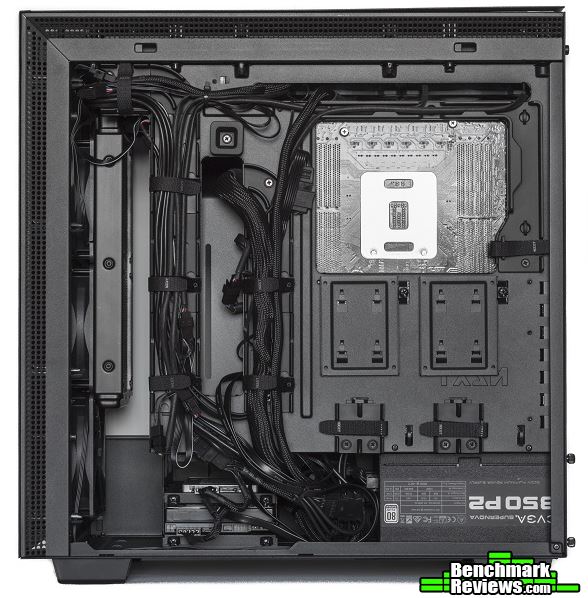

- System installation and expansion made easy with all-new cable management system
- Water-cooling installation simplified for both AIO and custom loop
- Adaptive Noise Reduction optimizes cooling and noise balance for best gaming comfort
Specifications
| Dimensions | W: 230mm H: 494mm D: 494mm (without feet) W: 230mm H: 516mm D: 494mm (with feet) |
| Material(s) | SECC Steel and Tempered Glass |
| Weight | 12.27 kg |
| Motherboard Support | Mini-ITX, MicroATX, ATX and EATX(Up to 272mm or 10.7-inches) |
| I/O Ports | 2 x USB 2.0 2 x USB 3.1 Gen 1 1 x Audio/Mic |
| Filters | Front and PSU Intake |

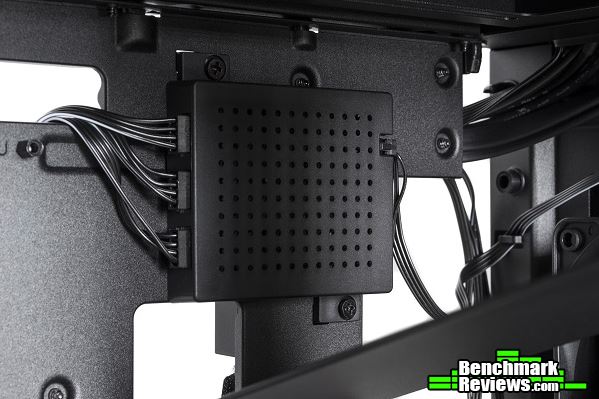

| Smart Device | 3 x Fan channels with Max 10W per channel output* 1 x RGB LED port support up to 4 x HUE+ LED strips or 5 x Aer RGB fans Built-in noise detection module *Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters. |
| Expansion Slots | 7 |
| Drive Bays | 2.5”: 7 3.5”: 2+1 |
| Radiator Support | Front: 2 x 140 or 3 x 120mm with Push/Pull Top: 2 x 140 or 3 x 120 |
| Fan Support | Front: 3 x 120/2 x 140mm (3 Aer F120 Case Version included) Top: 3 x 120/2 x 140mm Rear: 1 x 120/1 x 140mm (1 Aer F140 Case Version included) |
| Fan Specs | Aer F120 (Case Version) Speed: 1200 + 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing Aer F140 (Case Version) Speed: 1,000 + 200 RPM Airflow: 68.95 CFM Noise: 29 dBA Bearing: Rifle Bearing |
| Clearance | Cable Management: 18-22mm GPU Clearance: Up to 413mm CPU Cooler: Up to 185mm Front Radiator: 60mm Top Radiator: 30mm Reservoir & Pump: Up to 224mm (Along cable bar) |
| Warranty | 2 Years |
| Model Number | CA-H700W-BB |
| EAN | 5060301693849 |
| UPC | 815671013538 |
| System Requirements | PC with open internal USB 2.0 port and Windows® 10 operating system recommended. Internet connection is needed to download CAM.Some CAM features require Internet access, a valid email address and acceptance of our current Terms of Service. |
