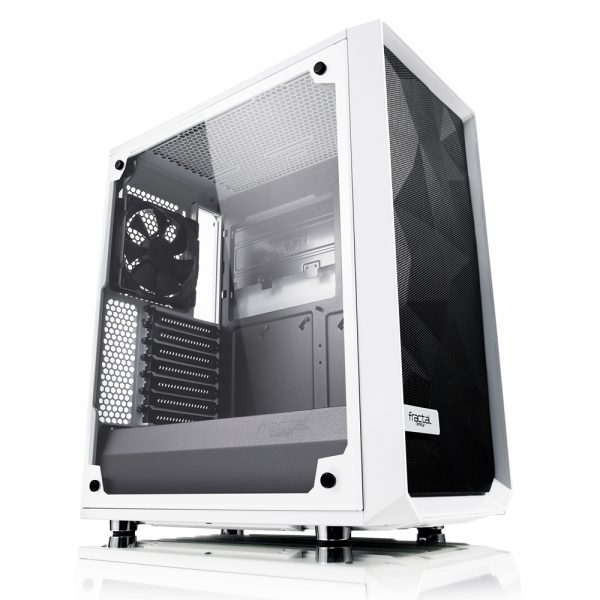

Fractal Design Meshify C White TG Case Available


Fractal Design Meshify C White TG Case Available

Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like diamond facets, the angular asymmetry of the Meshify C carves a space uniquely its own as a new dominant force in high-airflow design. Tempered glass completes the distinct, stealth-inspired aesthetic with exceptional style.

An open ATX layout with intelligent space utilization creates an unrestricted airflow path from the mesh front intakes directly through key components to exhaust, ensuring heat is never an issue. The Meshify C has a remarkably compact footprint with the high-end component support of a full tower, and with seven fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.

 Fractal Design Meshify C White TG Case Available

When performance is top priority and compromise is not an option, Meshify has you covered in style.

Key features

  • Streamlined high-airflow design
  • Performance and capacity of a larger tower in a remarkably compact mid-tower size
  • Newly designed angular mesh front panel maximizes air intake
  • Tempered glass side panel offers users a clean and clear view of their components
  • Distinctive new styling with stealthy black-on-black aesthetic
  • Flexible storage options with room for up to 5 drives
  • Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
  • Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
  • Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
  • Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
  • Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
  • Up to 35 mm of space behind motherboard plate with grommetted pass-through holes for clean cable routing

Specification

 3.5″ or 2.5″ Drive capacity 2
Dedicated 2.5″ drive capacity 3
Expansion slots 7
Motherboard compatibility ATX, mATX, ITX
Power supply type ATX
Total fan mounts 7
Front fan 3 x 120 or 2 x 140 mm (1 x Dynamic X2 GP-12 included)
Top fan 2 x 120/140 mm
Rear fan 1 x 120 mm (1 x Dynamic X2 GP-12 included)
Bottom fan 1 x 120 mm
Side fan No
Dust filters Bottom fan + PSU

Front fans

Top fans

Front radiator 120/240/360 mm

140/280 mm (max 144 mm width)

Top radiator 120/240 mm (max 40 mm motherboard component height)
Rear radiator 120 mm (max 125 mm width)
Power supply depth limit Maximum 175 mm recommended
Graphics card length limit Max 315 mm with front fan mounted
CPU cooler height limit 172 mm
Cable routing space 15-35 mm
Cable routing grommets Yes
Fixed Velcro straps Yes
Captive thumbscrews Right side panel

SSD brackets

Left side panel Tempered Glass

 Package contents

  • Meshify C White – TG computer case
  • User manual
  • Accessory box
  • Top filter

Additional information

  • EAN: 7340172700104
  • UPC: 843276100100
  • Product code: FD-CA-MESH-C-WT-TGC
