NZXT S340 Elite ATX Case Review

By Meng Vang

Manufacturer: NZXT, Inc.
Product Name: S340 Elite Matte Black ATX PC Gaming Case
Model Number: CA-S340W-B3
UPC: 815671012890
Price As Tested: $99.99 (Amazon | Newegg)

Full Disclosure: The product sample used in this article has been provided by NZXT.

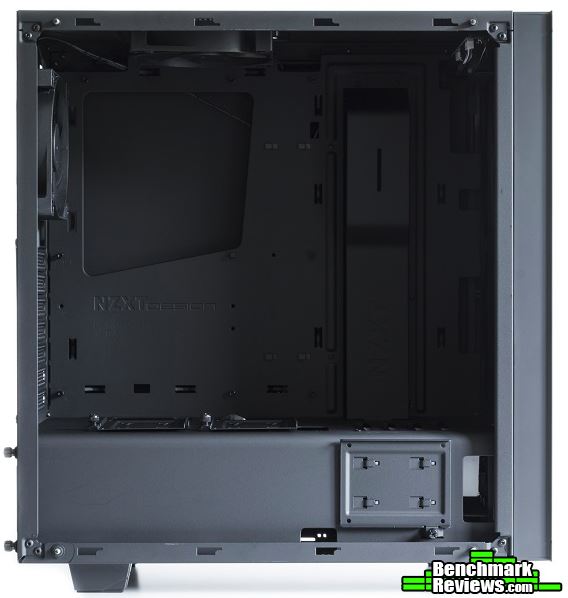

The NZXT S340 Elite computer case expands from the original S340 with its improved cable management system, VR capabilities, and a large tempered glass side panel. Because the Elite is geared towards VR, extra USB ports with an HDMI port are located on the front. Included with the S340 Elite is a magnetic cable management puck to store VR or audio headsets for easy access. A side mounted bracket for a 2.5″ SSD is located on the side of the power supply housing and the tempered glass side panel can show off the internal components. Benchmark Reviews will be taking a look at the NZXT S340 Elite in Matte Black.

Let’s go ahead and take a look at an overview of this case.



  • Steel chassis and tempered glass construction
  • Cable management optimized for a simple and hassle-free build
  • Streamlined VR access with HDMI and USB 3.0 from the top IO
  • Easy-to-use headset and VR cable management puck
  • Full Kraken Series cooler support up to 280mm
  • Integrated PSU shroud with three SSD mounts

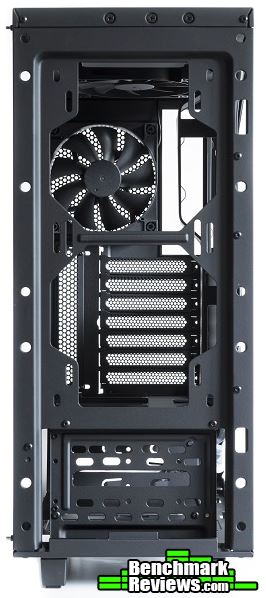

  • Fully filtered, easy-to-remove intake


Dimensions W: 203mm H: 474mm D: 432mm
Material Tempered glass side panel, Steel, ABS plastic
Weight 8.13kg
Motherboard Support mini-ITX, MicroATX, ATX
I/O Ports 1x Audio/Mic
2x USB 3.0
2x USB 2.0
HDMI with VR Support
Filters Front (Included)
Bottom Rear(Included)
Drive Bays Internal 3.5″: 2+1
Internal 2.5″: 3+1
Expansion Slots 7
Fan Support Front: 2x 140/2x120mm
Top: 1x 140/120mm (1 x 120mm FN V2 Fans Included)
Rear: 1x 120mm (1 x 120mm FN V2 Fan Included)
Radiator Support Front 2 x 140 or 2 x 120mm
Rear 1 x 120mm
Clearance GPU Clearance With Radiator: 334mm
GPU Clearance Without Radiator: 364mm
CPU Cooler: 161mm
Cable Management: Lowest Point – 17mm; Highest Point 168mm
Warranty 2 years
Model Number CA-S340W-B3
